Azure ETL: PowerBI

ETL Diagram from Austin API data to PowerBI

Idea:

Extract data from Austin, separate the information into three different tables, transform the data, upload it to Azure SQL and Visualize the information in PowerBI.

(Insert diagram)

List of Technology used on this project:

List of skills used on this project are:

• Visual Studio
• Python - Pandas, SQLAlchemy, Functions(I know, right?)
• Azure SQL
• PowerBI
• Data Modeling (basic)

ETL Information:

Setup

1. Import Libraries

   Library

   from datetime import date, datetime
   from sqlalchemy import create_engine
   from sqlalchemy import *
   import urllib
   import json
   import requests
   import pandas as pd


2. Create connection to database - Azure SQL

   Library

   #Azure Server information
   server = 'animalserver.database.windows.net'
   database = 'animaldatabase'
   username = 'azureuser'
   password = 'Azure_Password'
   driver= '{ODBC Driver 18 for SQL Server}'

   #Azure Server Information Parameters
   params = urllib.parse.quote_plus('DRIVER='+driver+';SERVER=tcp:'+server+';PORT=1433;DATABASE='+database+';UID='+username+';PWD='+ password)
   #Learn how to create the connection
   conn_str = 'mssql+pyodbc:///?odbc_connect={}'.format(params)
   #Create Engine - VERY IMPORTANT
   engine_azure = create_engine(conn_str,echo=True)
   #Create metadata object, help at the creation of tables
   meta = MetaData()


Extraction

1. Extract data from API and save into three dataframes; names, dates, & outcomes.
   Extraction

   #Extraction
   #Extract data from API
   #Save information into dataframe called names
   def api_extraction_names():
       animal_shelter_api = requests.get("https://data.austintexas.gov/resource/9t4d-g238.json?$limit=10")
       animal_shelter_table = animal_shelter_api.text
       json.loads(animal_shelter_table)
       animal_shelter_table = pd.read_json(animal_shelter_table)

       names = animal_shelter_table[["animal_id","name","animal_type","breed","color"]]
       print(names.head())

       return names

   #Extract data from API
   #Save information into dataframe called dates
   def api_extraction_dates():
       animal_shelter_api = requests.get("https://data.austintexas.gov/resource/9t4d-g238.json?$limit=10")
       animal_shelter_table = animal_shelter_api.text
       json.loads(animal_shelter_table)
       animal_shelter_table = pd.read_json(animal_shelter_table)

       dates = animal_shelter_table[["animal_id","datetime","monthyear","date_of_birth"]]
       print(dates.head())

       return dates

   #Extract data from API
   #Save information into dataframe called outcome
   def api_extraction_outcome():
       animal_shelter_api = requests.get("https://data.austintexas.gov/resource/9t4d-g238.json?$limit=10")
       animal_shelter_table = animal_shelter_api.text
       json.loads(animal_shelter_table)
       animal_shelter_table = pd.read_json(animal_shelter_table)

       outcome = animal_shelter_table[["animal_id","outcome_type","sex_upon_outcome","age_upon_outcome"]]
       print(outcome.head())

       return outcome


Transformation:

1. Transform column “monthyear”, split values into two new columns
2. Transform column “date”, split information into 3 new columns
3. Transform column “date of birth”, take the information on the left of “T”
4. delete columns; “Date time” and “monthyear”
   Transform

   #Transformation
   #Separate values from column monthyear into two new columns date and date time, information from dates dataframe (not yet a table)
   #Separate the column date, into 3 new columns date year, date motnh, date day
   #separate the colum date of birth and accepting only everything before the value "T"
   #Delete the columns datetime and monthyear
   def transformation_dates(dates):

       #Documentation https://learn.microsoft.com/en-us/sql/machine-learning/data-exploration/python-dataframe-pandas?view=sql-server-ver16

       #documentation - https://datascienceparichay.com/article/pandas-split-column-by-delimiter/
       #take month year and separrate the values
       dates[['Date', 'date_time']] = dates['monthyear'].str.split('T', expand = True)

       dates[['date_year', 'date_month', 'date_day']] = dates['Date'].str.split('-', expand = True)

       #Documentation
       #https://stackoverflow.com/questions/40705480/python-pandas-remove-everything-after-a-delimiter-in-a-string
       #Separate the field date of birth after the value "T"
       dates['date_of_birth'] = dates['date_of_birth'].str.split('T').str[0]

       #drop "datetime", "monthyear"
       #extract_dates.drop(['datetime','monthyear'], axis=1)
       del dates['datetime']
       del dates['monthyear']

       print(dates)
       return dates


Load:

1. Create three tables in Azure SQL
2. Load records into new tables using the three dataframes used in the extraction step
   Table creation & data load

   def load_animal_shelter(names, outcome, dates):

       p_names = Table(
           'p_names', meta,
           Column('animal_id', String(20), primary_key = True),
           Column('name', String),
           Column('animal_type', String),
           Column('breed', String),
           Column('color', String),
       )

       p_dates = Table(
           'p_dates', meta,
           Column('animal_id', String(20), primary_key = True),
           Column('datetime', DateTime),
           Column('monthyear', String),
           Column('date_of_birth', String)
       )

       p_outcome = Table(
           'p_outcome', meta,
           Column('animal_id', String(20), primary_key = True),
           Column('outcome_type', String),
           Column('sex_upon_outcome', String),
           Column('age_upon_outcome', String)
       )

       meta.create_all(engine_azure)
       print("Tables created")

       #Will update this with a function later on
       names.to_sql('p_names', con=engine_azure, if_exists='replace', index=False)
       print("Table names Populated")
       outcome.to_sql('p_dates', con=engine_azure, if_exists='replace', index=False)
       print("Table dates Populated")
       dates.to_sql('p_outcome', con=engine_azure, if_exists='replace', index=False)
       print("Table outcome Populated")

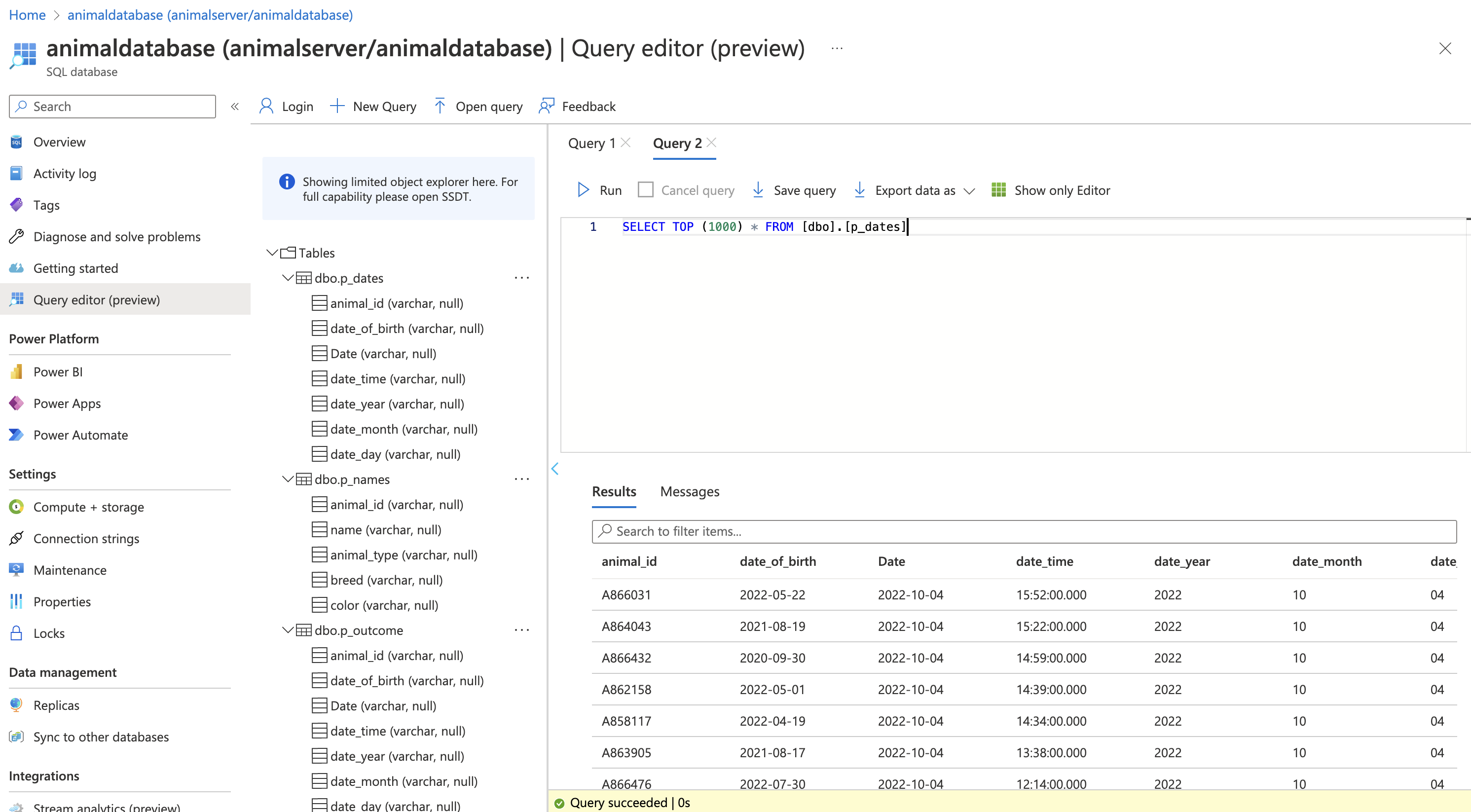

Azure SQL

1. See list of tables and columns
2. See Query and results

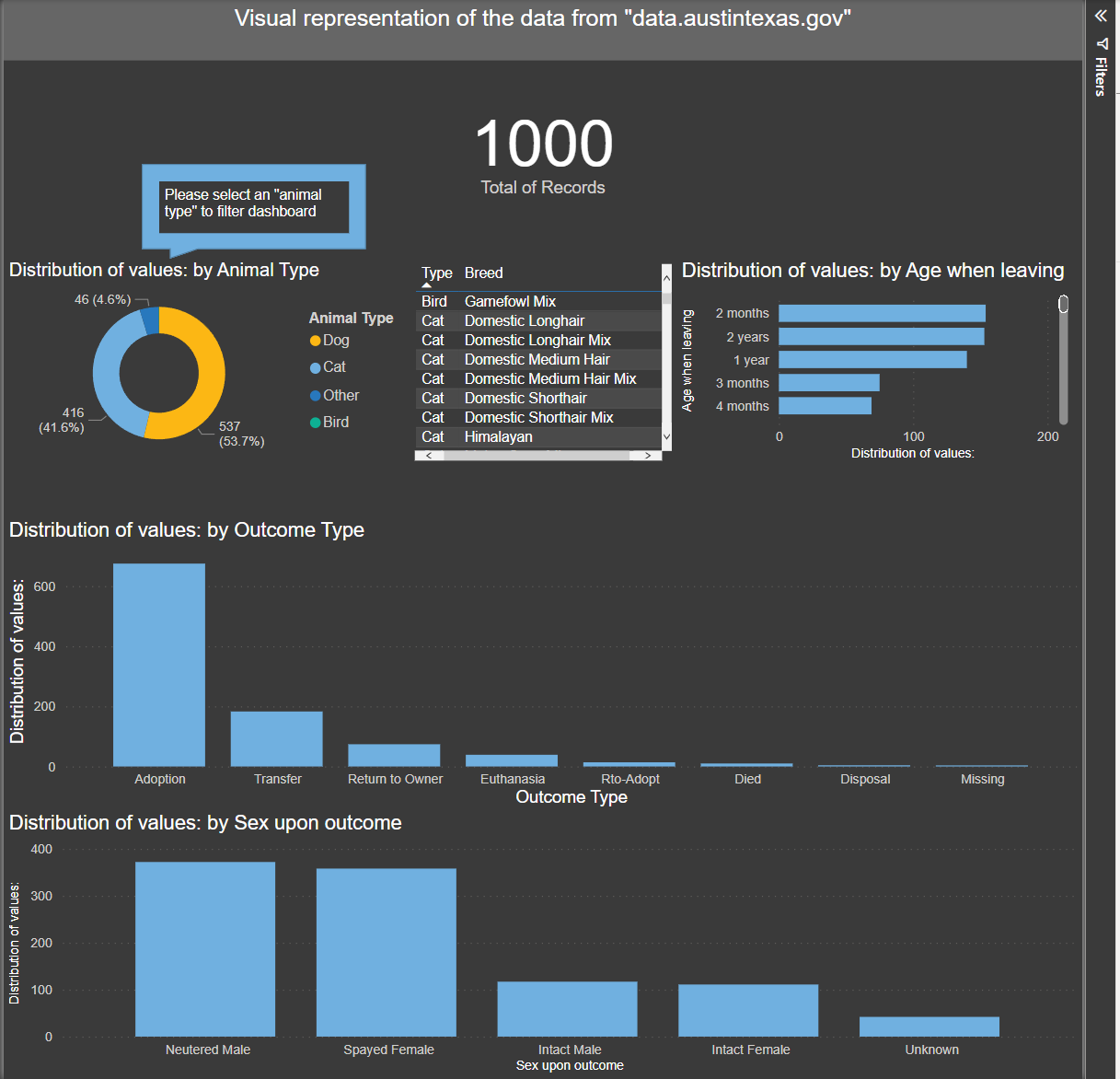

Visualization: PowerBI

1. Dashboard present:

   • Total of records
   • Distribution of animal type
   • Type of animal and their breed
   • Reason of leaving shelter
   • Sex outcome when leaving the shelter



2. Select animal type to filter dashboard



END
